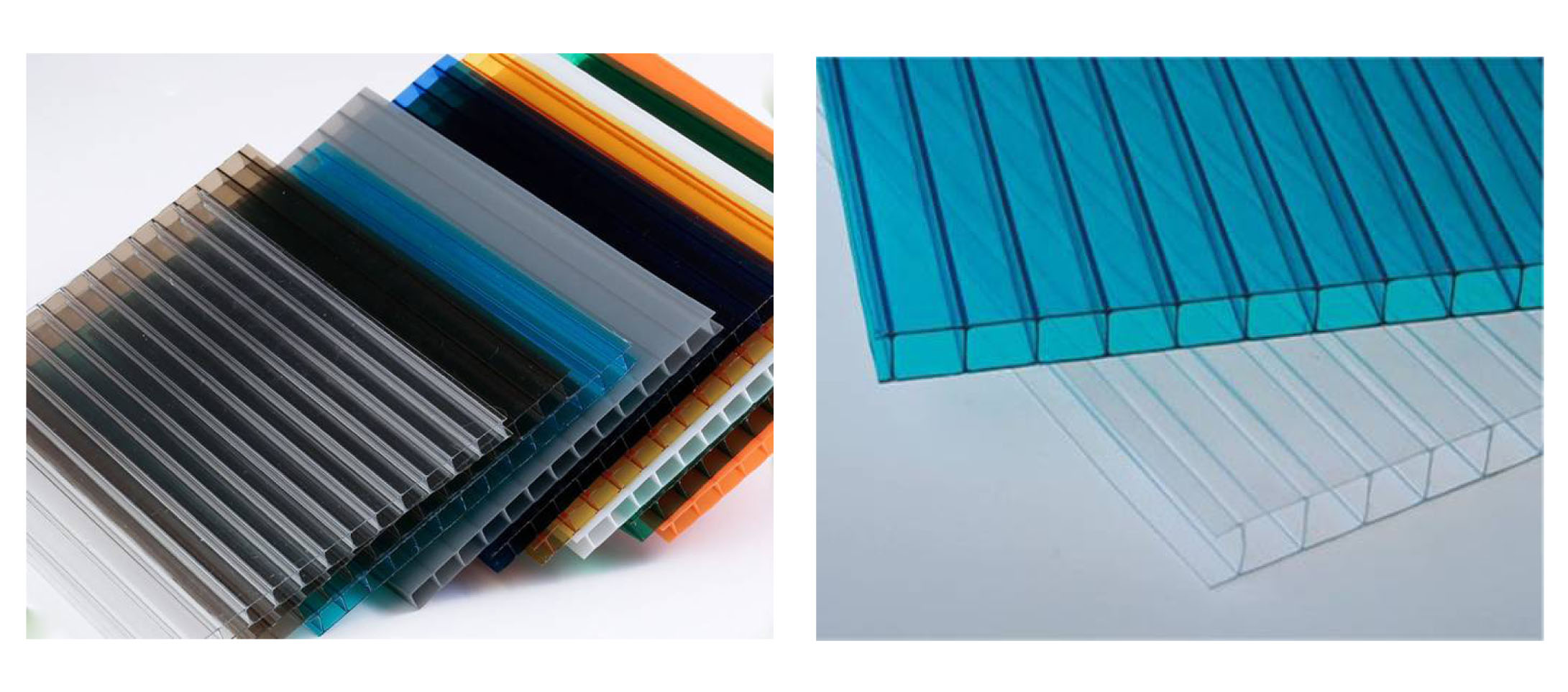

SABIN® Multiwall Sheets is an aesthetically pleasing twin wall extruded multiwall polycarbonate sheet which offers higher light transmission products with lower weight for handling and transportation.
SABIN® Twinwall is transparent and translucent with both side UV protected sheet. Standard colours are clear, opal and bronze. Available in thicknesses of 4, 6, 8 and 10 mm.
Knife cutting operation is used both online and offline to avoid saw dust.
SABIN® Twinwall has a 10 year limited warranty against discolouration, loss of impact strength and light transmission due to weathering.
Excellent fire performance complying requirements to EN 13501-1 (EUROPEAN BUILDING STD). In case of fire, the sheet will melt and allow venting where heat and smoke will be let out and therefore reduce the growth of fire by flame spread.
Building industry – roofing, cladding, sidewalls, conservatories, domes, skylights, sheds, car ports, smoke vents, swimming pool covers, suspended ceilings, glasshouses, shopping centre roofing, railway/metro station, stadium roofing and partitions. Lighting/packaging lamp optics and neon signs boxes, pallet shields, protective covers for fragile items. Advertising illuminated signs and advertising panels. Agriculture greenhouses, lorry/ tractor ports and farm/barn buildings.
| Property | Value | Unit | Standard |
|---|---|---|---|
| Physical properties | |||
| Density | 1,2 | g/cm3 | ISO 1183 |
| Refractive index (20 °C) | 1,586 | ISO 489 | |
| Moisture absorption 24 hours, 23 °C, 50% RH | 0,15 | % | Mechanical properties |
| Tensile strength at yield (at break) | 63 (70) | N/mm2 | ISO 527 |
| Elongation at yield (at break) | 6 (110) | % | ISO 527 |
| Elastic modulus | 2300 | N/mm2 | ISO 527 |
| Flexural modulus | 2300 | N/mm2 | SO 178 |
| Charpy unnotched impact strength +23 °C | NB | kJ/m2 | ISO 179/2D |
| Charpy unnotched impact strength -40 °C | NB | kJ/m2 | ISO 179/2D |
| Izod notched impact strength +23 °C | 65 | kJ/m2 | ISO 180/1A |
| Izod notched impact strength -30 °C | 10 | kJ/m2 | ISO 180/1A |
| Rockwell hardness | M70 | ISO 2039-2 | |
| Thermal properties | |||
| Linear coefficient of thermal expansion (23-80 °C) | 0,7 | 10-4 x K-1 | |
| Heat deflection temperature, HDT A (1,80 N/mm2 ) | 132 | °C | ISO 75 |
| Heat deflection temperature, HDT A (1,80 N/mm2 ) | 132 | °C | ×ISO 75 |
| Heat deflection temperature, HDT B (0,45 N/mm2 ) | 142 | °C | ISO 75 |
| Vicat temperature VST/B 120 | 149 | °C | ISO 306 |
| Vicat temperature VST/B 50 | 148 | °C | ISO 306 |
| Specific heat capacity, Cp | 1,17 | kJ/kg.K | |
| Thermal conductivity | 0,21 | W/m.K | DIN 52612 |

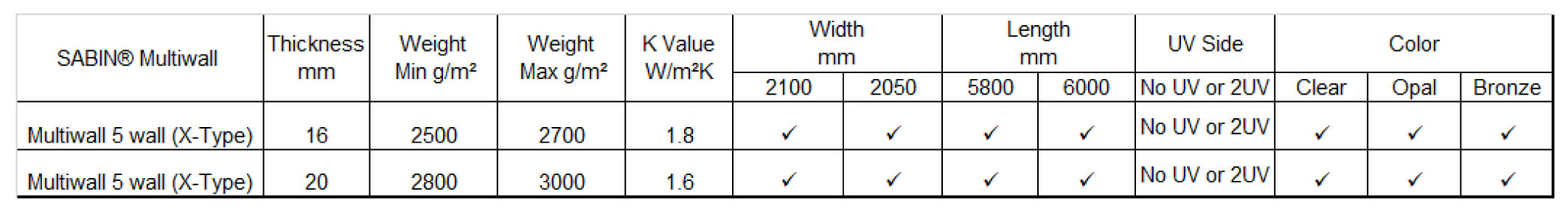

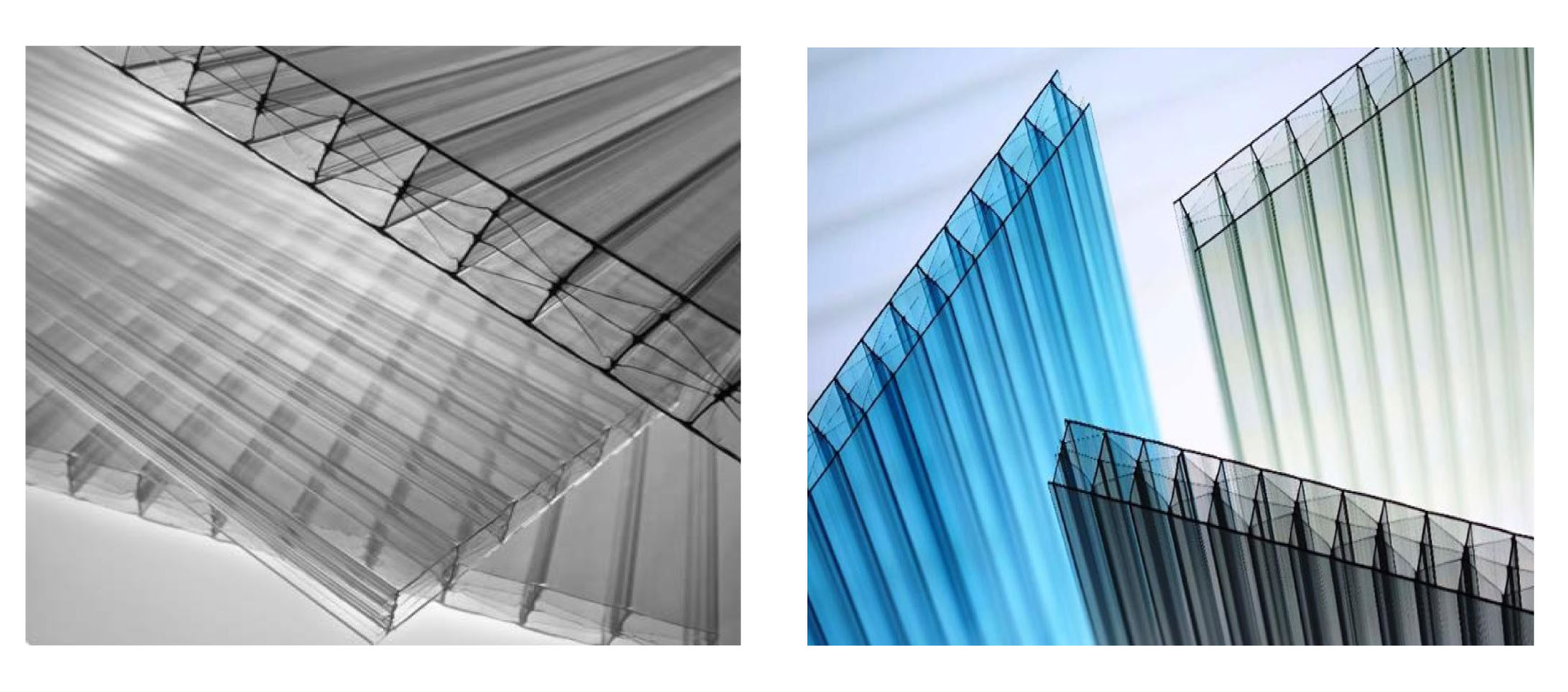

SABIN® Multiwall X-Type is a range of 5 wall extruded polycarbonate sheet specifically designed to offer increased stiffness allowing cost saving by using less glazing bars for installations hence increased light transmittance.
SABIN® Multiwall X-Type is transparent and translucent with both side UV protection (also available without UV protection). Standard colours are clear, opal and bronze. Available in thicknesses 16 and 20mm.
Knife cutting operation is used both online and offline to avoid saw dust.
SABIN® Multiwall X-Type has a 10 year limited warranty against discolouration, loss of impact strength and light transmission due to weathering.
EXCELLENT FIRE PERFORMANCE complying requirements to EN 13501-1 (EUROPEAN BUILDING STD). In case of fire, the sheet will melt and allow venting where heat and smoke will be let out and therefore reduce the growth of fire by flame spread.
Building industry – roofing, cladding, sidewalls, conservatories, domes, skylights, sheds, car ports, smoke vents, swimming pool covers, suspended ceilings, glasshouses, shopping centre roofing, railway/metro station, stadia roofing and partitions. Lighting/packaging lamp optics and neon signs boxes, pallet shields, protective covers for fragile items. Advertising illuminated signs and advertising panels. Agriculture greenhouses, lorry/ tractor ports and farm/barn buildings.
| Property | Value | Unit | Standard |
|---|---|---|---|
| Physical properties | |||
| Density | 1,2 | g/cm3 | ISO 1183 |
| Refractive index (20 °C) | 1,586 | ISO 489 | |
| Moisture absorption 24 hours, 23 °C, 50% RH | 0,15 | % | Mechanical properties |
| Tensile strength at yield (at break) | 63 (70) | N/mm2 | ISO 527 |
| Elongation at yield (at break) | 6 (110) | % | ISO 527 |
| Elastic modulus | 2300 | N/mm2 | ISO 527 |
| Flexural modulus | 2300 | N/mm2 | SO 178 |
| Charpy unnotched impact strength +23 °C | NB | kJ/m2 | ISO 179/2D |
| Charpy unnotched impact strength -40 °C | NB | kJ/m2 | ISO 179/2D |
| Izod notched impact strength +23 °C | 65 | kJ/m2 | ISO 180/1A |
| Izod notched impact strength -30 °C | 10 | kJ/m2 | ISO 180/1A |
| Rockwell hardness | M70 | ISO 2039-2 | |
| Thermal properties | |||
| Linear coefficient of thermal expansion (23-80 °C) | 0,7 | 10-4 x K-1 | |
| Heat deflection temperature, HDT A (1,80 N/mm2 ) | 132 | °C | |
| Heat deflection temperature, HDT A (1,80 N/mm2 ) | 132 | °C | ×ISO 75 |
| Heat deflection temperature, HDT B (0,45 N/mm2 ) | 142 | °C | ISO 75 |
| Vicat temperature VST/B 120 | 149 | °C | ISO 306 |
| Vicat temperature VST/B 50 | 148 | °C | ISO 306 |
| Specific heat capacity, Cp | 1,17 | kJ/kg.K | |
| Thermal conductivity | 0,21 | W/m.K | DIN 52612 |
